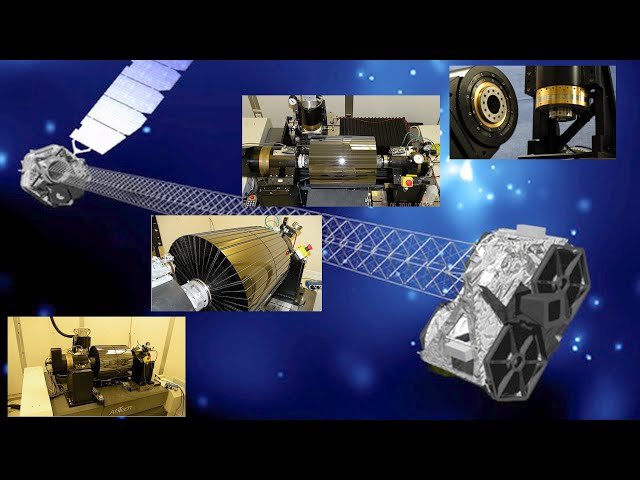

Multi-functional air bearing machines for NASA NuSTAR X-ray Telescope
ABTech collaborated with Scientists from NASA, and Columbia University’s Nevis Astrophysics Lab when they needed an ultra-precision machine that would safely and quickly produce cylindrical optics modules for their long-delayed program. The scientists at NASA challenged ABTech to develop a multifunctional machine that would act as a diamond turning lathe, an indexing tool for raster grinding and an assembly station – all in one.
The extremely high accuracies of the air bearing slides and spindles were dedicated by the requirements of the assembled lens module. We exceeded the accuracy requirements and achieved 0.5 micron straightness (uncompensated) of the Z-axis over 700 mm of travel and position accuracies to 0.25 micron. Each machine features: Linear stacked air bearing stages; Air-bearing work holding and tailstock spindles for lathe operation or holding position of the optic during assembly and grinding; High-speed air bearing spindle for grinding graphite optic mounting surfaces; Indexing turret assembly; Granite surface plate and base frame; CNC lathe controller and electrical control cabinet.
ABTech, designed, manufactured and delivered two (2) air-bearing based diamond turning drum lathes in 6 months putting the program back on schedule. The machines performed flawlessly during the assembly and testing of the lens modules for the NuSTAR telescope.
ABTech believes that every interaction is made better by focusing on the well-being of our customers. We challenge ourselves daily with continuous improvement to make each product meet and exceed our customers specifications. We believe our proven process of discovery, collaboration, quotation, execution, implementation and follow-up give ABTech the precision difference.
ABTech engineers every product for ease of use. If your business depends on air-bearing sub-micron accuracies, real-time measurements and ease of use, ABTech is the right choice.
info@abtechmfg.com: https://abtechmfg.com/custom-solutions/ -
ABTech's Mission; Putting the Customer First!
What does it mean to put Customer First? Simply, it means building a better relationship with our customer and making it our mission to meet or exceed their needs and expectations. ABTech strives to provide the best-possible experience for our customers. We are customer oriented, customer driven, and customer focused. If your business depends on air-bearing sub-micron accuracies, real-time measurements, and ease of use, ABTech is the right choice. Putting the customer first is not part of ABTech’s strategy, it is part of ABTech’s culture. Subscribe to our page, to see what’s next in our video line up. Let’s started on a new project together! -

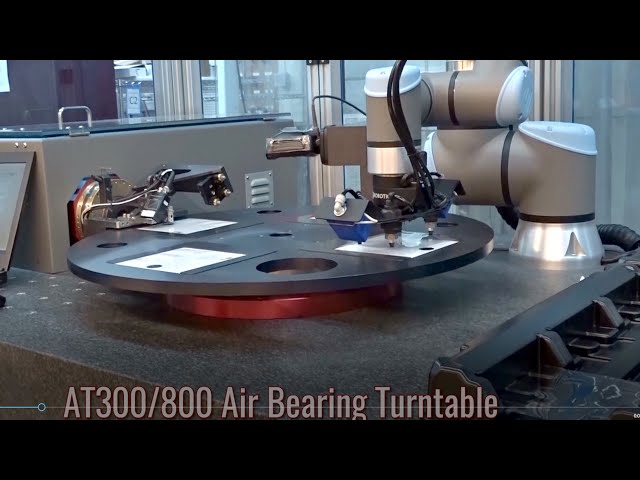

First-Ever Automatic Precision Measurement/Loading System for GRIN Optical Thin Film measurement.
ABTech believes that every interaction is made better by focusing on the well-being of our customers. We challenge ourselves daily with continuous improvement to make each product meet and exceed our customers specifications.
We believe our proven process of discovery, collaboration, quotation, execution, implementation and follow-up give ABTech the precision difference.
We engineer every product for ease to use. Our air-bearing technology provides accuracies 0.000,001” 0.025 microns with nearly absolute repeatability, and no contacting parts to wear over time, therefore delivering years of reliable and maintenance-free operation.
If your business depends on air-bearing sub-micron accuracies, real-time measurements, and ease of use, ABTech is the right choice.
When a company develops a unique product, it needs equally innovative measurement systems to monitor consistency and verify the quality. Faced with the need to meet tight specifications for its ultra-thin, high-performance thin films, Peak Nano Optics turned to ABTech in New Hampshire for ABTech’s expertise in custom-engineered metrology and precision motion systems.
Peak Nano has developed optical lenses composed of film layers 10,000 times thinner than a human hair. These nano-layered, gradient, refractive index (GRIN) lenses are significantly lighter than any other, enable more complex performance parameters and are custom-tailored for military, medical and commercial applications.
The company needed a system to precisely measure the refractive index of each film, ensure the films met customer specifications and then load them robotically into sorting bins.
ABTech designed, engineered, and built the system using ABTech’s own proprietary precision motion and measurement systems, off-the-shelf components _such as the robot_ that were used in new ways and Peak Nano’s application software. One of the project team’s challenges were to identify and bring together all the pieces, evaluate and test them for this custom purpose and learn the new technologies involved, at the same time ensuring that the completed system would be accurate and fast enough to meet Peak Nano’s needs. ABTech designs and builds custom designed solutions. Check out our product video library at abtechmfg.com/videos for a solution to meet your ultra-precision needs.
To read more down load the white paper. https://abtechmfg.com/whitepapers/grin-optical-thin-film-download/ -

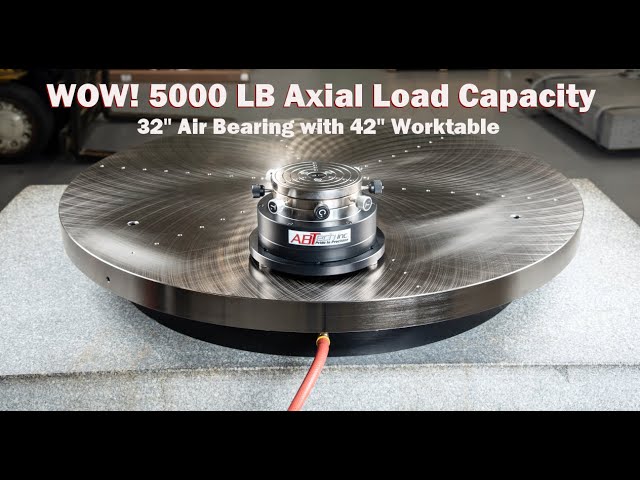

HDRT 800/1070 precision heavy duty rotary air bearing table
Are you challenged with measuring extremely heavy and large parts with ultra-precision accuracy? Are you having problems finding a partner that will work with you to meet and exceed your expectations? Look no further …. check out ABTech’s HDRT 800/1070 precision heavy duty rotary air bearing table. With its 42” diameter worktable and 5000 LB load capacity this air bearing table is made specifically for critical measurements of large parts. Accuracy grades range from A2, A5, and A10 to meet your specific application needs.
Need something SMALLER for your specific application, call ABTech Inc. or visit: abtechmfg.com/precision-motion-components/rotary-tables/air-bearing-rotary-tables/ to find a rotary table that meets your needs! -

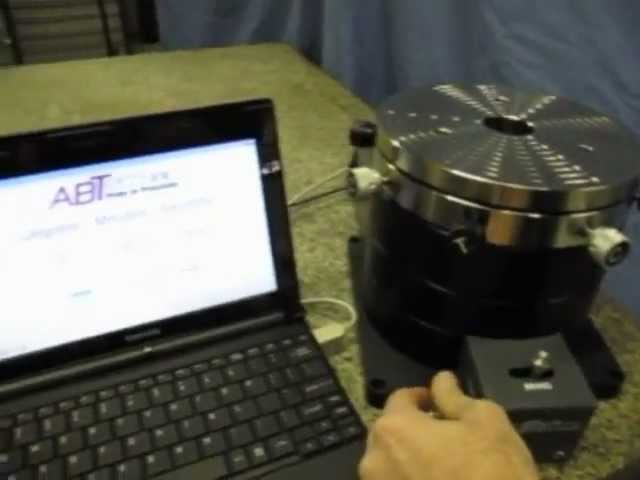

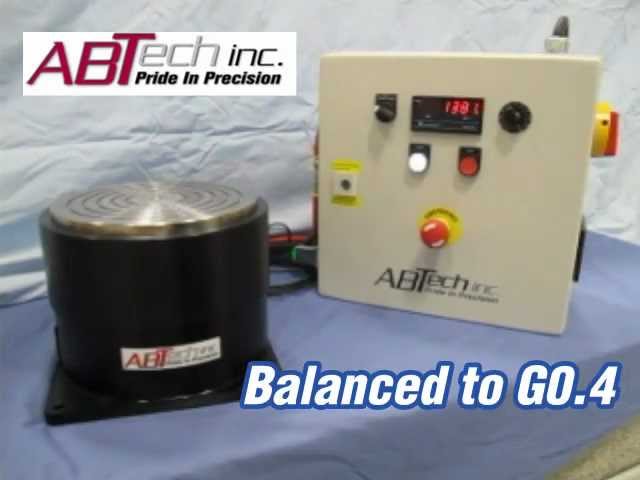

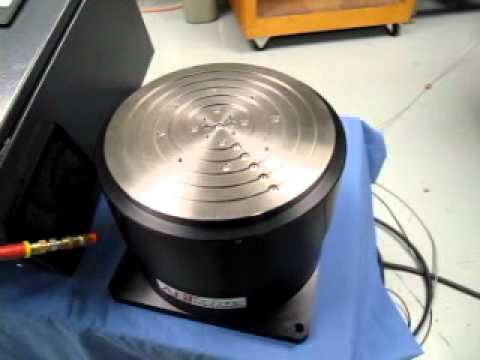

AT150 DD A1 PRC1 & Software

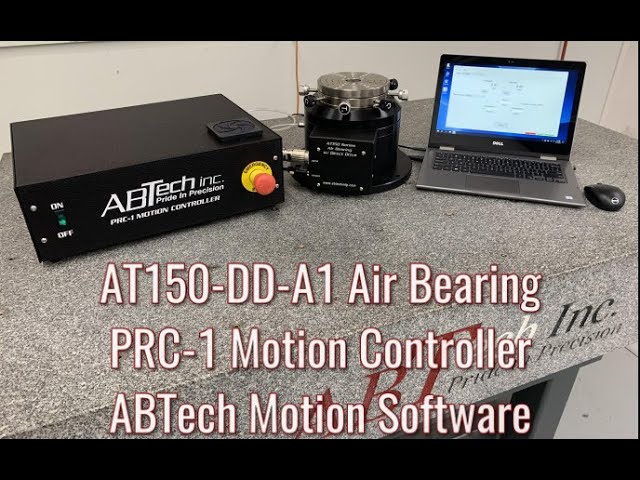

AT150-DD-A1 Air Bearing | PRC-1 Motion Controller | ABTech Motion Software. It is a Trunkey precision motion system with a rack mount motion controller, a dual readhead encoder with a brushless DC direct drive. Spindle error motions of less than 1U" 25nm and position accuracy less than 2 arcsec. Call to discuss what ABTech can do for you! -

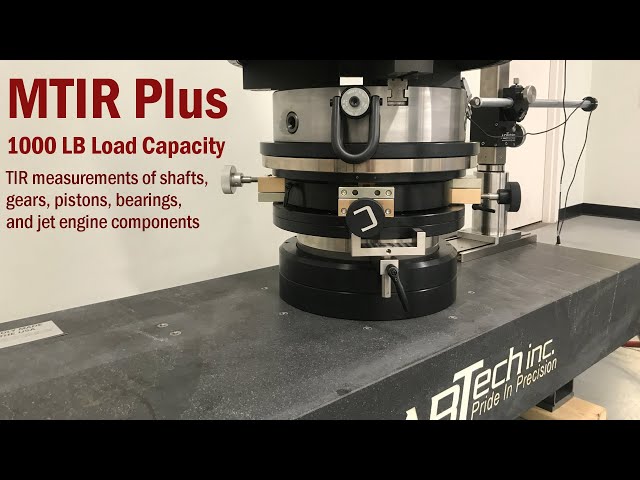

MTIR Plus
MTIR Plus has a 1000 LB load capacity. Used worldwide to align and assemble compressors and turbines. TIR measurements of shafts, gears, pistons, bearings, and jet engine components. For more information on all our EAS and MTIR systems: visit https://abtechmfg.com/turbine-engine-assembly-systems/eas/ -

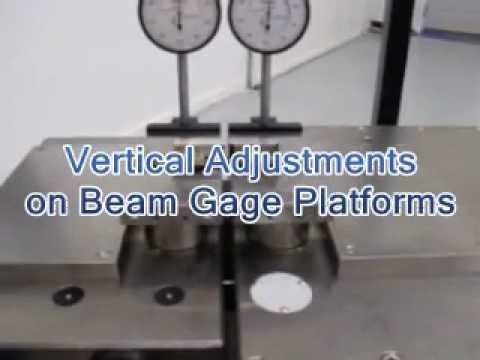

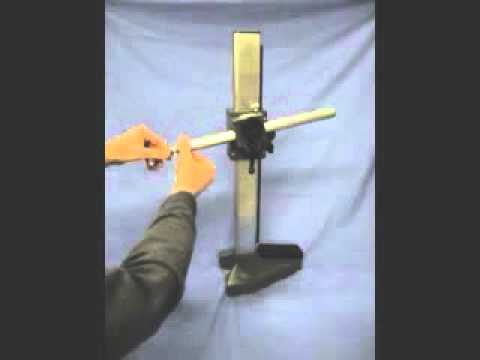

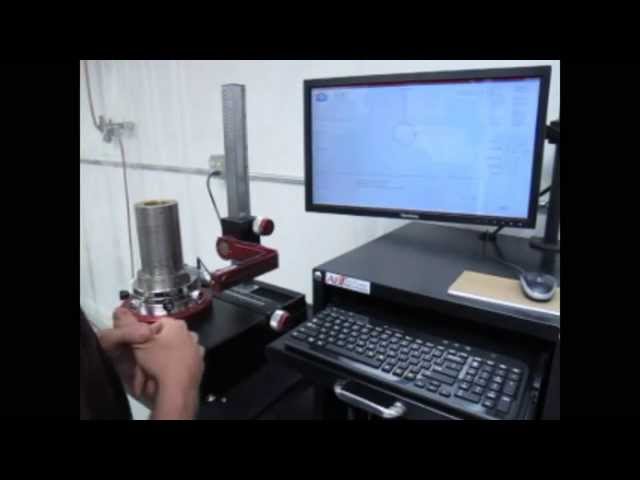

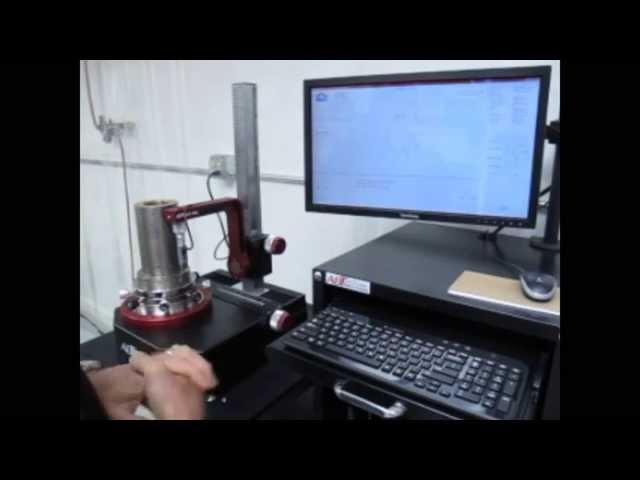

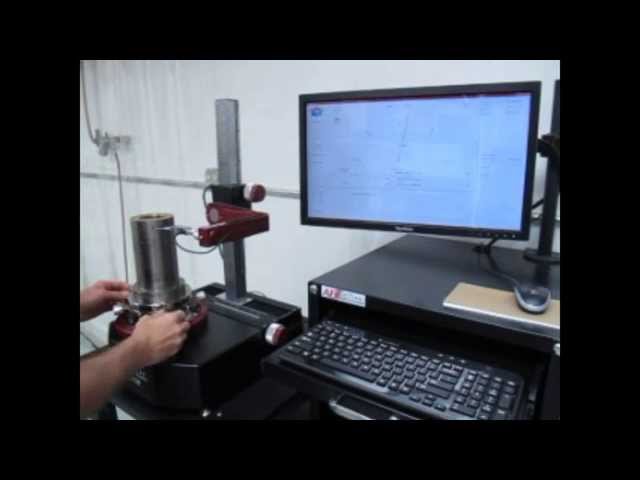

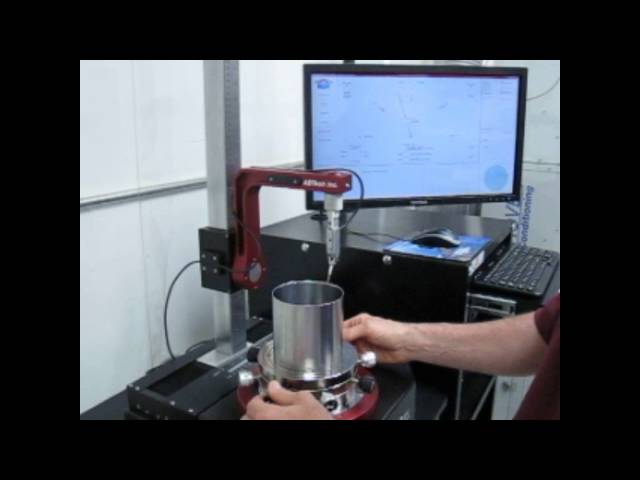

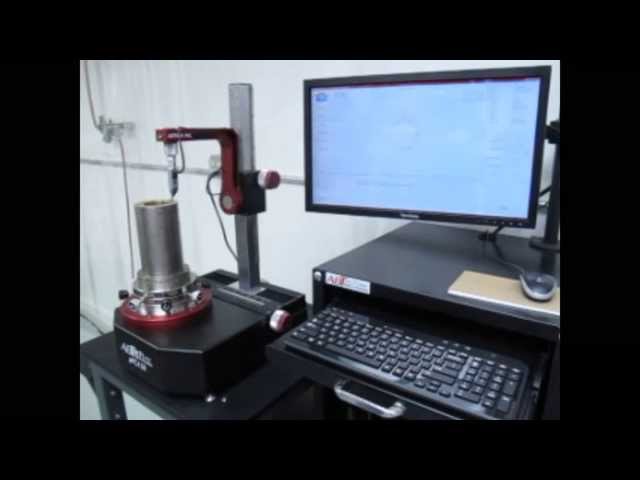

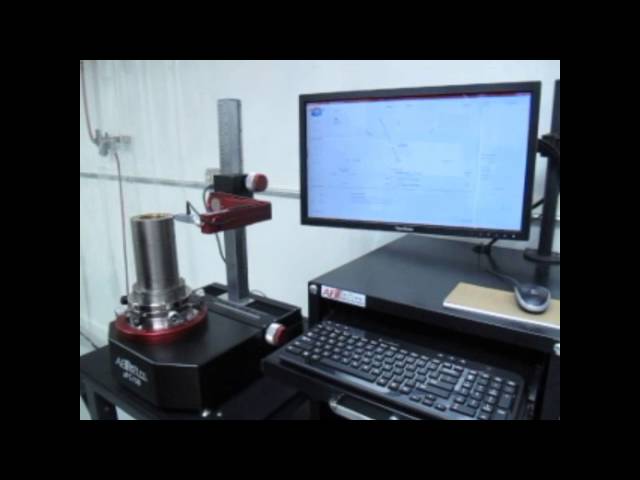

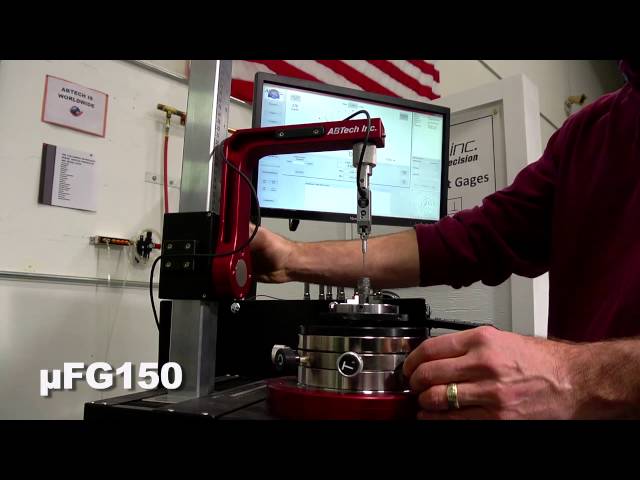

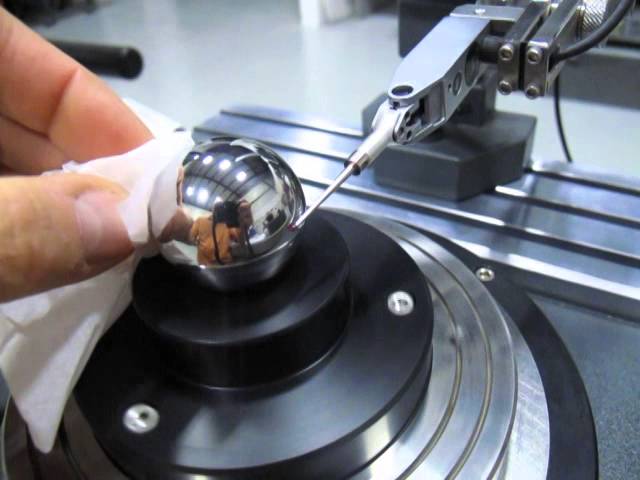

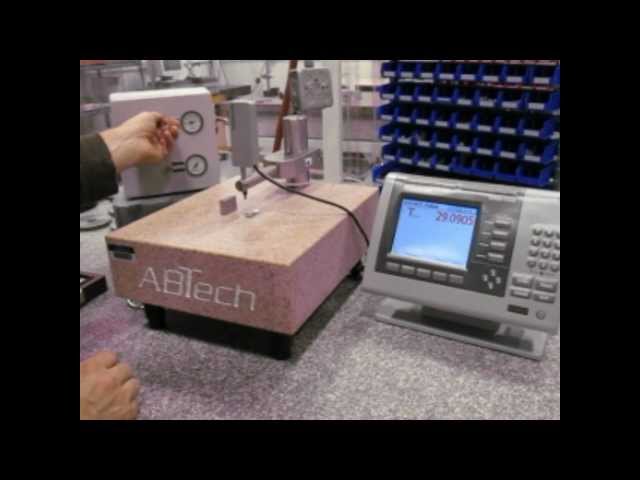

ABTech Inc. Microform's 100 and 150 with accessories

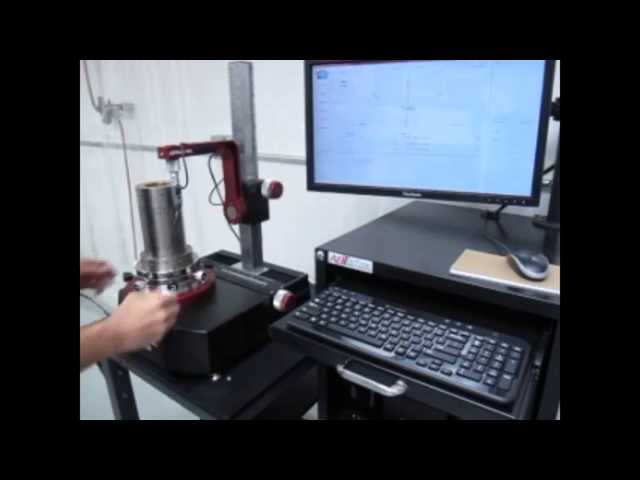

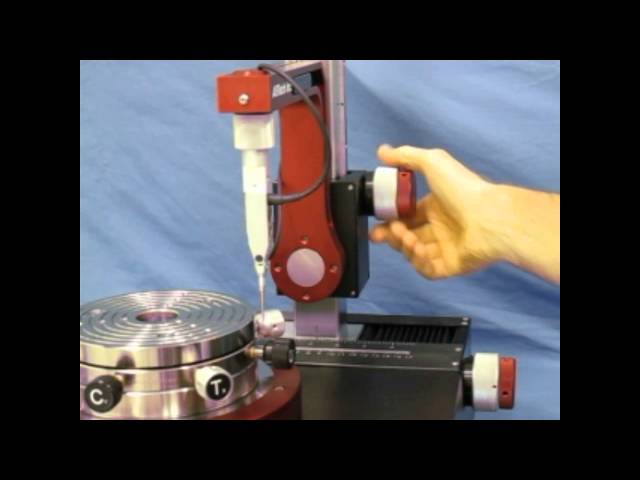

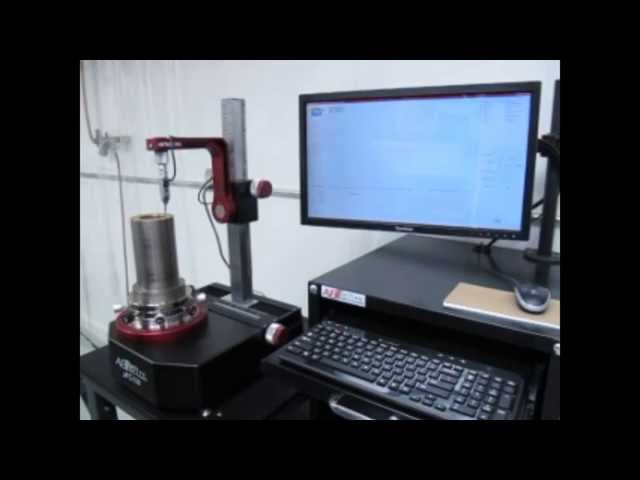

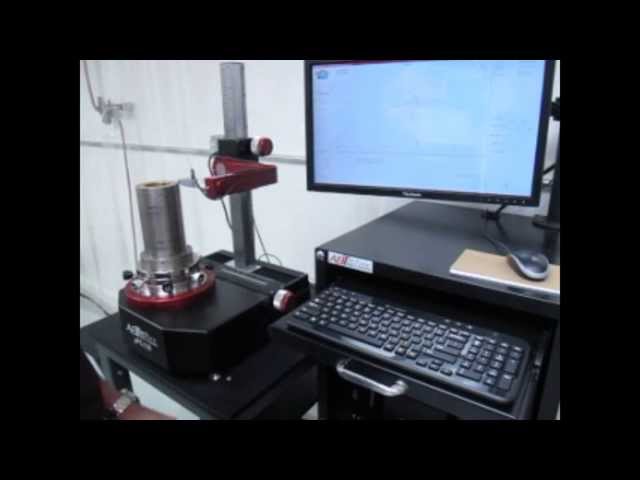

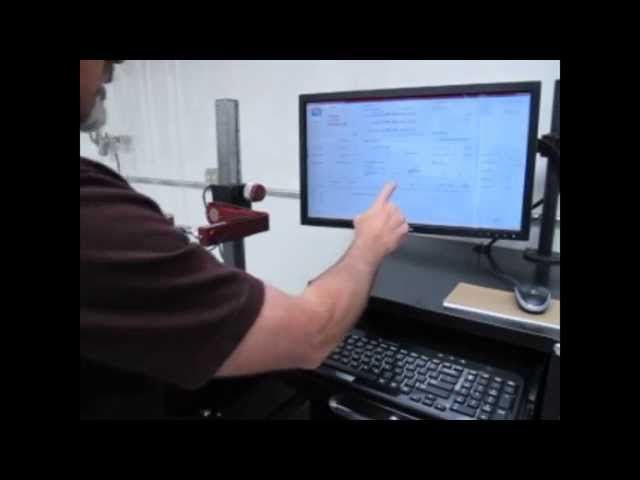

We have a full line of air bearing based roundness gages for checking roundness, runout, flatness, concentricity, parallelism, and perpendicularity. With our commitment to simplistic precision we developed an easy to use and intuitive front-end software package and robust mechanical platform resulting in the best value on the market. Our standard roundness gage models measure parts up to 32 inches in diameter and 2,000 lbs in weight. -

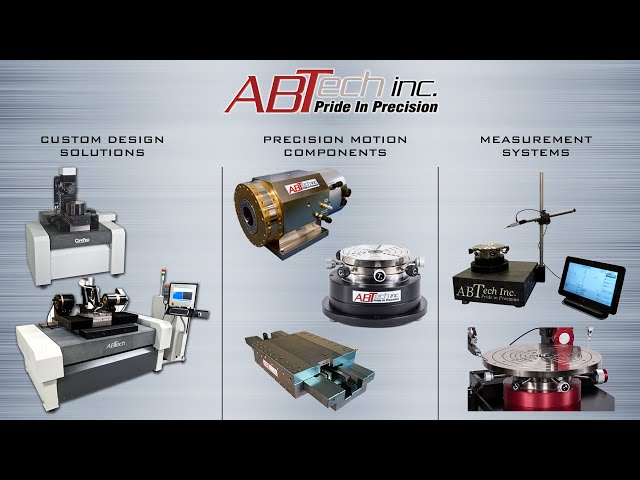

ABTech Custom Design Solutions
For more information: https://abtechmfg.com
ABTech specializes in unparalleled expertise in the design and development of ultra-precision motion systems and metrology solutions. Our custom metrology gages, air bearing rotary tables, and turnkey multi-axis systems are designed, engineered, and manufactured entirely in-house, giving our customers flexibility at every stage from concept through delivery. Our measurement systems are ideal for applications ranging from precision optics, automotive, aerospace, aviation, and semiconductor to name a few. Check us out at: https://abtechmfg.com
https://www.linkedin.com/company/2304070/admin/ -

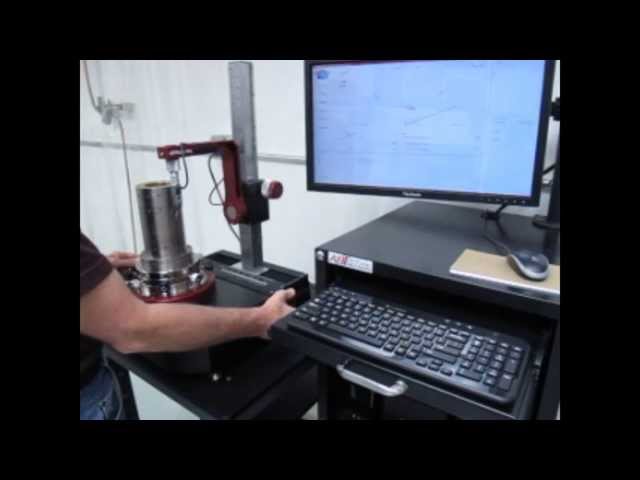

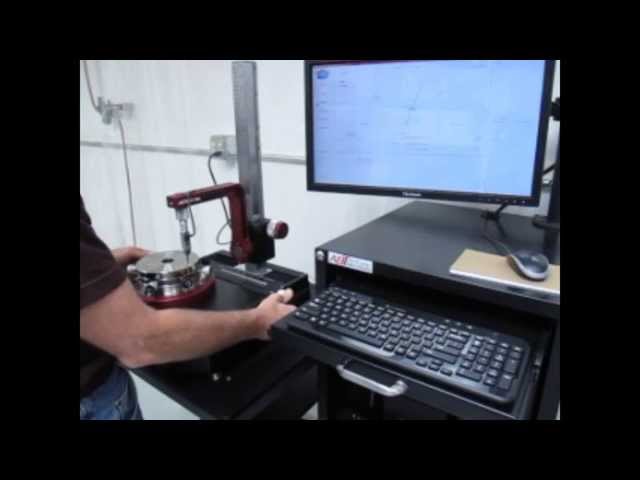

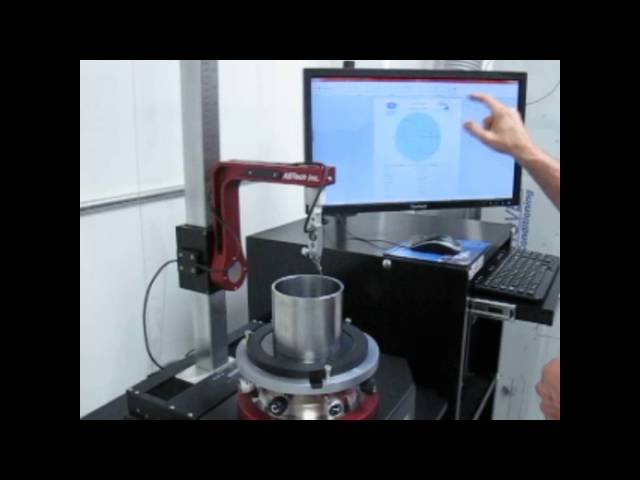

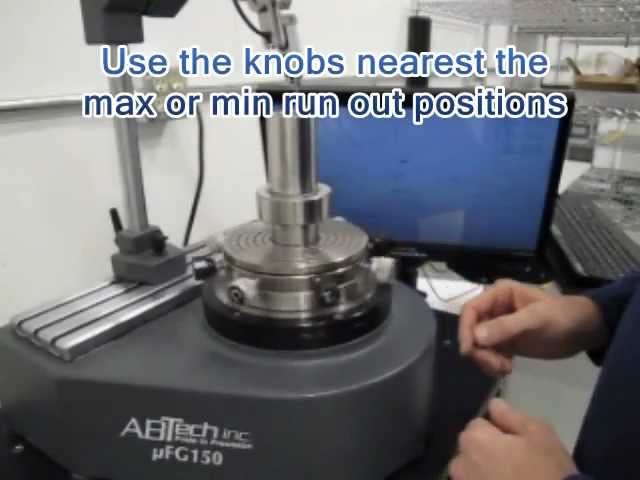

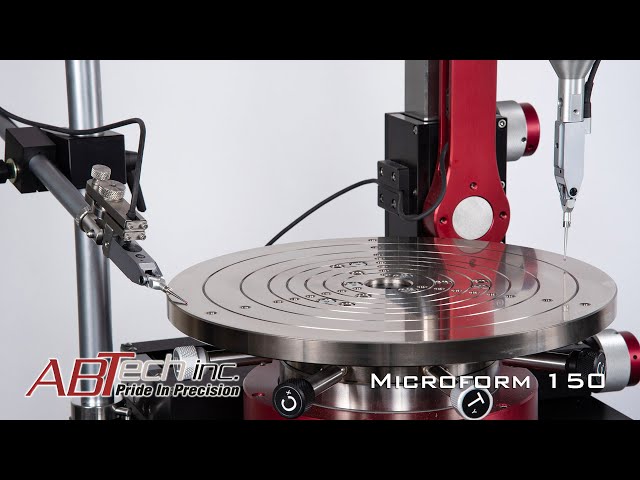

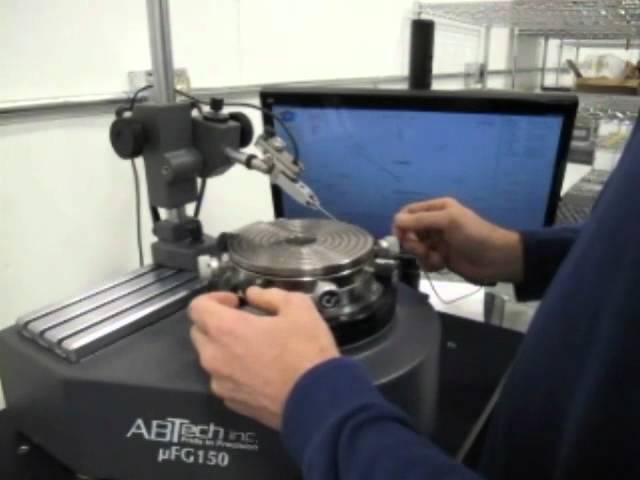

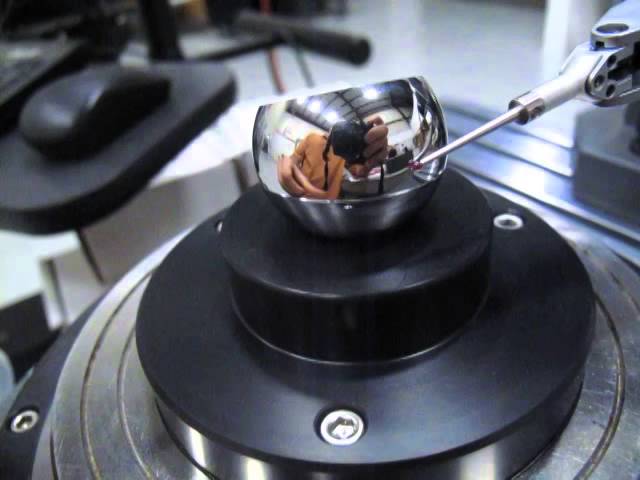

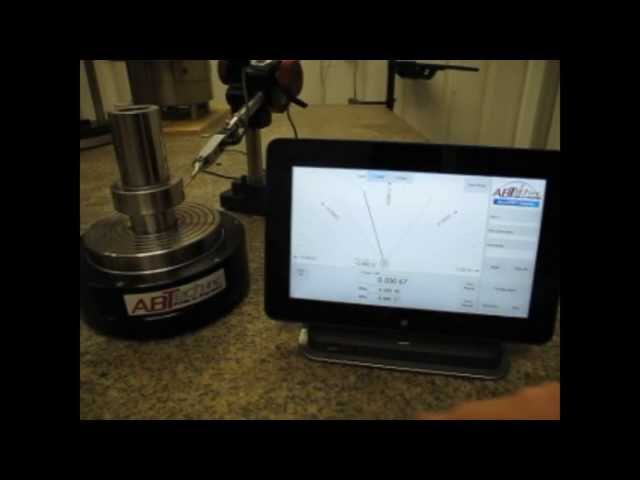

Benefits of ABTech's ultra precision air bearing Microform 150 roundness gage!
For more information: https://www.abtechmfg.com

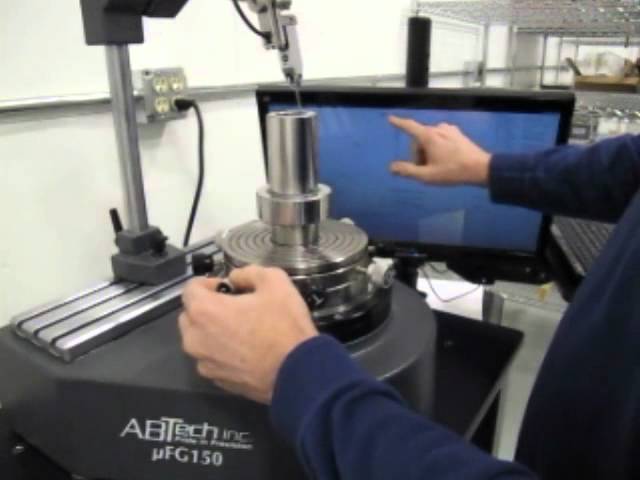

ABTech Inc. ultra precision air bearing Microform 150 roundness gage, high accuracy and high repeatability, for both ID and OD measurements. We offer a comprehensive line of ultra-precision air bearing-based roundness gages, as well as a variety of dimensional measurement gages. Designed, manufactured, and tested in-house, each gage provides the highest accuracy, repeatability and reliability. Our control software and user interfaces maximize ease of use and simplify training allowing you to achieve the highest level of operator productivity and flexibility, and the lowest cost of operation. Our gages are ideal for measurement and assembly applications ranging from ball bearings, infrared and precision optics, automotive and aerospace.
https://www.linkedin.com/company/2304070/admin/
https://twitter.com/ABTechInc -

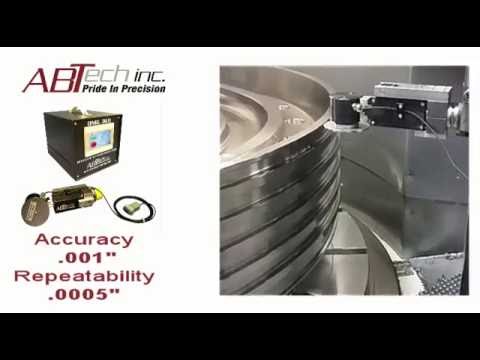

ABTech DMG360 On Machine Diameter Measurement Gage
Need to check size of parts while on the lathe, grinder or other machine center? Diameter Measurement Gages accurately measure the diameter of large parts on-machine without needing to calibrate and sweep with a beam gage.
The precision ground hardened steel wheel provides both accuracy and durability while riding on an uninterrupted OD surface of your part. Using your machine center to rotate the part the gage calculates the diameter by averaging four full rotations. A proximity sensor and trigger with LED indicator for alignment combine to precisely count off each revolution of the part. A digital touchscreen is built into the portable control box for the operator’s interface and to display the measurement results.
Common machine tool receiver mount options are available to use the DMG360 wheel assembly in a variety of machines. It does not have to be dedicated to only one machine in your shop! Adjusters are built into the wheel body to allow you to easily align the wheel to the part, and a reference guide to apply the proper amount of pressure to preload the measurement wheel.
Optional handheld IR thermal sensors are available so you can enter the room temperature as well as the part temperature to use the system’s built in compensation factor. -

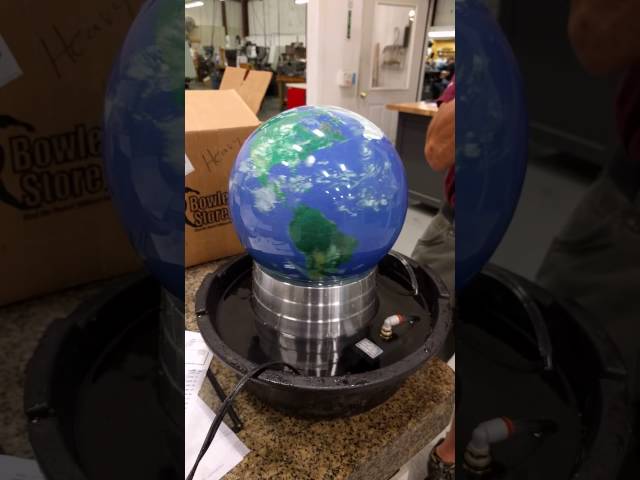

ABTech Hydrostatic Globe Fountain
Our water feature being tested for an art installation at Hannah Grimes Connect 2016 event. This is an example of a "fluid film bearing" where the earth is floating on a thin film of water supplied by a submersible pump in the basin. -
Large Diameter Precision Centering Fixture

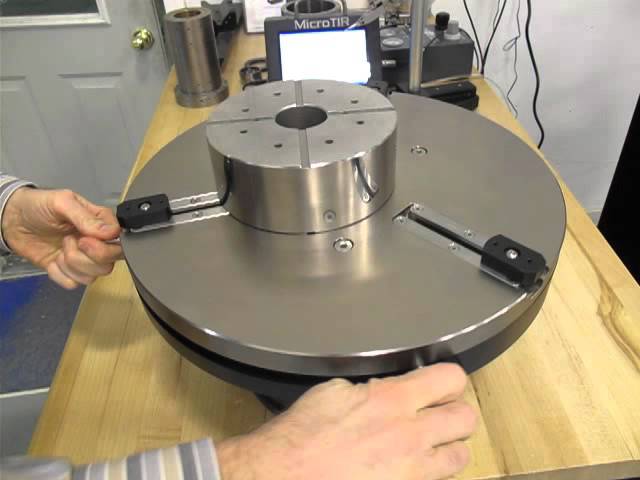

Model PCF300 mounted on a rotary air bearing table showing how quick and easy it is to center a large diameter part, aligning it to the axis of rotation of the bearing for accurate part inspection. This is a 22 pound 6.5" diameter turned part.
