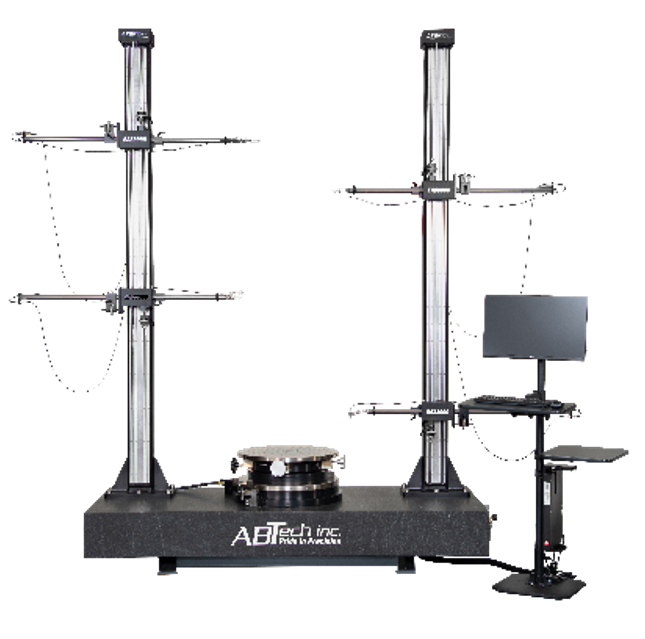

Model EAS3000-2T Genspect System

Model EAS3000-2T

Genspect System

GE Tooling #9471M13P07

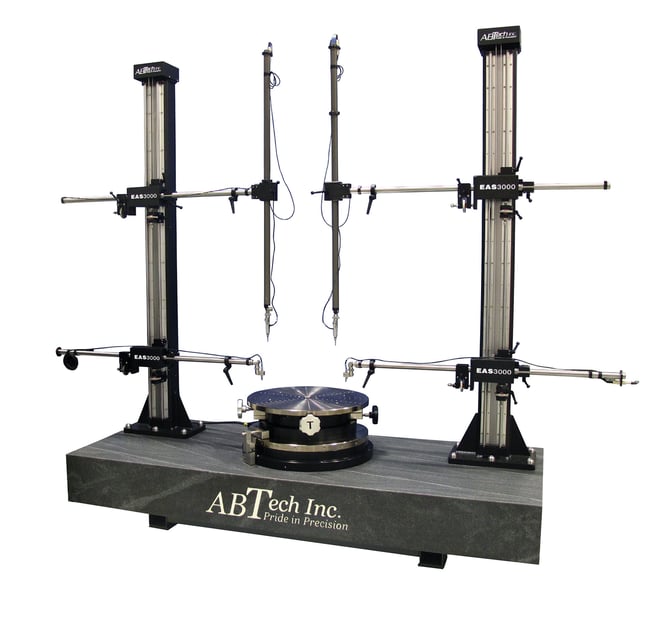

Close Up of Model EAS3000-2T

Model EAS3000-2T Close Up

Specifications

  • Model HDRT600 heavy duty 24” (610 mm) diameter air bearing

  • BEI 1000 line count rotary encoder assembly

  • Model HDTC4-449/610 tilt and center assembly with 24” (610 mm) worktable

  • Rotary table anti-rotation kit

  • Dual element air filter/regulator for air bearing supply

  • Grade A black natural granite surface plate (36” x 90” x 10”) & welded steel base frame

  • (2) 80” counterbalanced gage towers with (2) arms each, mounted to granite

  • (2) lever-type & (2) plunger-type probes with extension cables & fine adjust mounts

  • USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs

  • Windows PC preloaded with Genspect software

  • 27” color monitor, keyboard and mouse

  • Mobile electronics cart

  • Certified gage blocks for gage head calibration

Working Envelope

  • Max axial load (centered and balanced): 3,000 lbs (1,361 Kg)
  • Max part diameter (swing): 50” (127 cm)
  • Max part height (OD probe access): 80” (203.2 cm)

Engine Lines

Compressors (HPCR) and Turbines (HPTR):

  • GE90
  • GE9x

Industries:

Aerospace
Automotive
Aviation
Bearings
Energy
Land & Marine
Optics
Semiconductor
