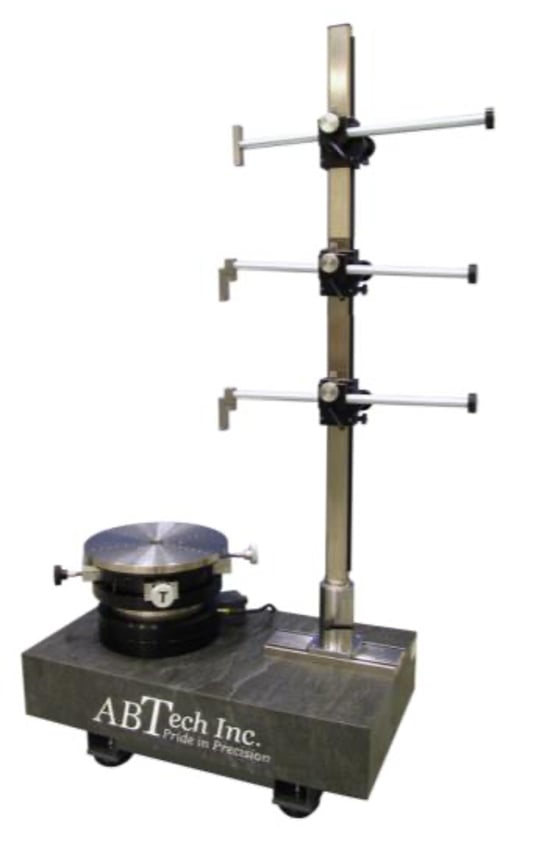

Model EAS1000G

Model EAS1000G

Genspect System

GE Tooling #9471M13P06

Model EAS1000G Close Up

Close Up of Model EAS1000G

Midview of Model EAS1000G

Specifications

  • Model AT300/300-A5 12” (305 mm) diameter air bearing

  • BEI 1000 line count rotary encoder assembly

  • Model HDTC4-300/449 tilt and center assembly with 17.625” (449 mm) worktable

  • Rotary table anti-rotation kit

  • Dual element air filter/regulator for air bearing supply

  • Grade A black natural granite surface plate (24” x 42” x 8”) & welded steel base frame

  • 60” model GSI-60P/24A inspection style gage stand mounted to granite with three arms

  • (2) lever-type & (4) plunger-type probes with extension cables, & (3) fine adjust mounts

  • (3) unique engine specific dual probe holder mounts

  • USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs

  • Windows PC preloaded with Genspect software

  • 27” color monitor, keyboard and mouse

  • Mobile electronics cart

  • Certified gage blocks for gage head calibration

Working Envelope

  • Max axial load (centered and balanced): 1,000 lbs (454 Kg)
  • Max part diameter (swing): 50” (127 cm)
  • Max part height (OD probe access): 58” (147 cm)

Engine Lines

Compressors (HPCR) and Turbines (HPTR):

  • LEAP-X

Industries:

Aerospace
Automotive
Aviation
Bearings
Energy
Land & Marine
Optics
Semiconductor
