EAS-P: Rotary Engine Tooling for GE Engines

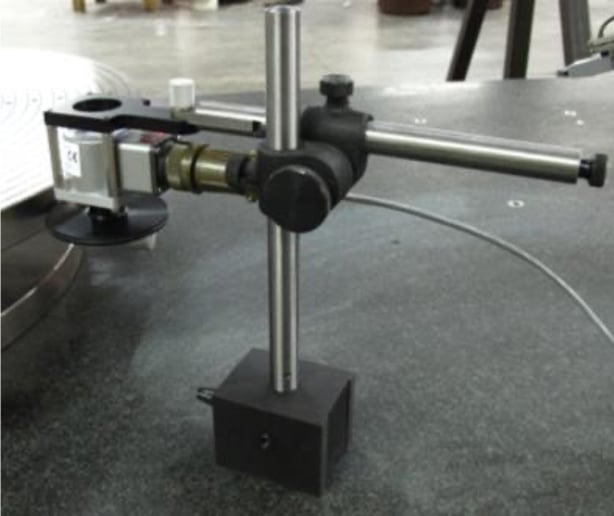

3.5”Ø friction drive wheel with BEI 200 line rotary encoder in magnetic base fixture

[Other diameter wheels available on special order]

Four magnetic base portable gage stands with fine adjust arms

(2) lever-type & (2) plunger-type probes with extension cables

USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs

Windows PC preloaded with Genspect software

27” color monitor, keyboard and mouse

Mobile electronics cart

Certified gage blocks for gage head calibration

Industries:

Aerospace

Automotive

Aviation

Bearings

Energy

Land & Marine

Optics

Semiconductor

Download Brochure

We use 2 ABTech air-bearing spindles with tip/tilt and centering capability in our facility. These units are used for precision assembly and final metrology. We have never had an issue with either one, and the ABTech team is a great partner for us. We will be adding more systems as our young organization continues to grow. Jayson TiersonPresident
Vertex Optics

Made in the U.S.A of U.S. and imported parts

Every product we sell exemplifies our company-wide commitment to "Pride in Precision" craftsmanship. To that end, all of our products are designed, manufactured, and tested exclusively by ABTech at our New Hampshire facility.

Model EAS – P

Genspect System

GE Tooling #9471M13P01

Specifications

3.5”Ø friction drive wheel with BEI 200 line rotary encoder in magnetic base fixture

Four magnetic base portable gage stands with fine adjust arms

(2) lever-type & (2) plunger-type probes with extension cables

USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs

Windows PC preloaded with Genspect software

27” color monitor, keyboard and mouse

Mobile electronics cart

Certified gage blocks for gage head calibration

Working Envelope
