Turbine Engine Assembly Systems

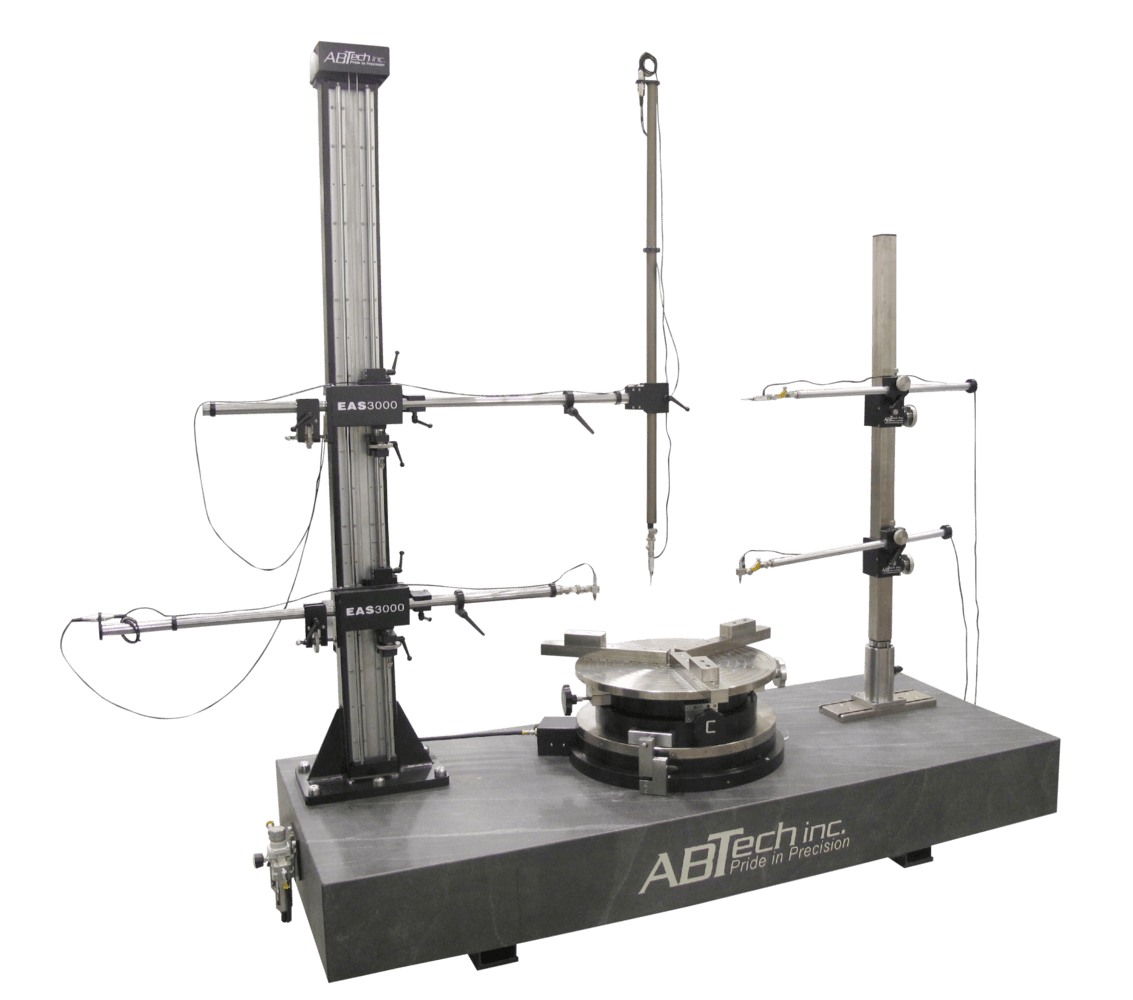

Engine Assembly Systems (EAS) for GE Engines

EAS Systems provide engine stack projection capabilities for high pressure compressor and turbine (HPCR and HPTR) builds. Also referred to as stack prediction, these systems allow operators to quickly and accurately measure individual turbine engine parts and precisely align component stacks the first time, ensuring the least amount of runout.
System form parameters include roundness, concentricity, perpendicularity, parallelism, and flatness. Overall system accuracy is under 5.0 millionths of an inch (5.0 µ” or 0.125 micron).

Learn More
EAS1000 system low profile 2 towers, 4 probe arms

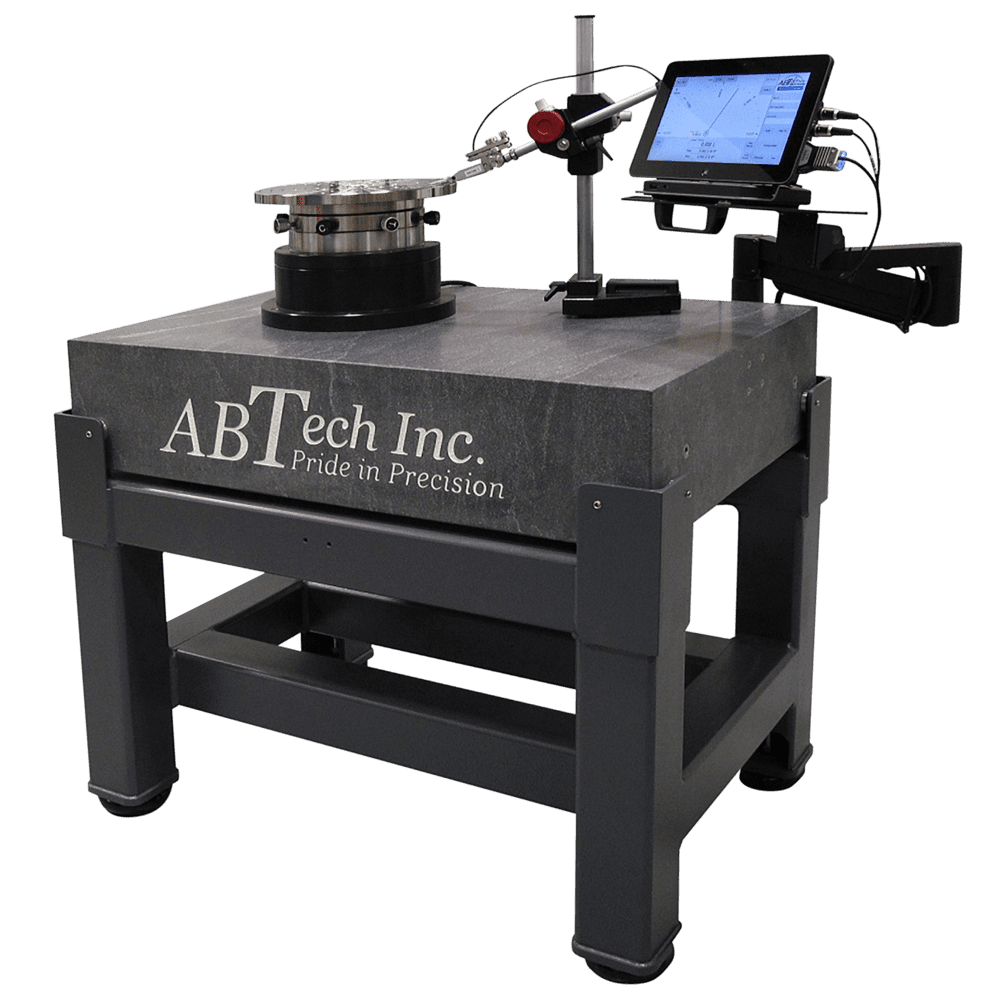

Micro TIR plus gage

MicroTIR Plus Gages

Our TIR gages are versatile enough to measure a wide array of parts including in-process shop floor TIR measurements of shafts, gears, pistons, bearings, jet engine components, turbocharger and other precision machined or stamped parts. Each gage is also ideally suited to handle incoming part inspection for vendor compliance, optical lens inspection, alignment and assembly applications, and manufacturing process control. You can even make on-machine measurements although for best results and to avoid errors from your machine’s axis, we recommend measuring from a qualified axis or surface.

Learn More

Accessories

ABTech ffers a variety of accessories to fit your required mechanical needs. Tilt and center worktables, motor drives and controls, encoders and amplifiers, dual element filter/regulators, granite surface plates, standard and custom sized clear apertures and custom fixturing. Each of these accessories are tailored to fit your specific need. Please contact ABTech for any questions you may have.

Learn More

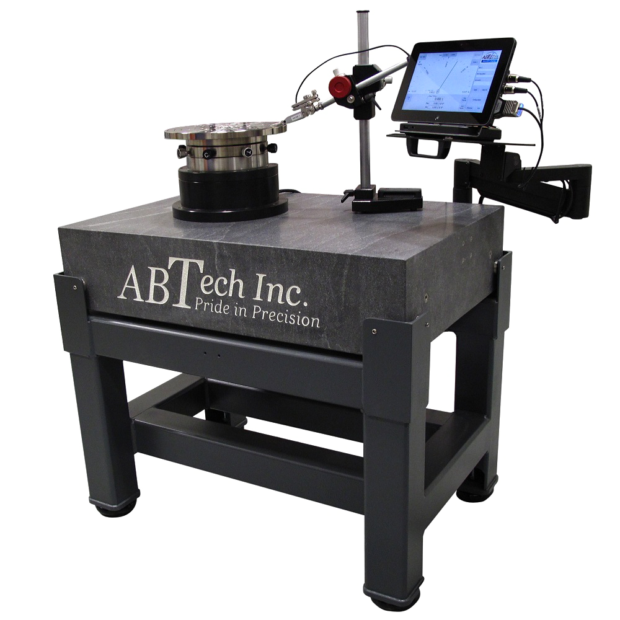

Micro TIR shown with single probe adaptor

Industries:

Aerospace
Automotive
Aviation
Bearings
Energy
Land & Marine
Optics
Semiconductor
  • RBC Bearings
  • Moore Nanotechnology Systems, LLC
  • Solar Turbines
  • Feintool
  • NuStar
  • Corning
  • Turbocam International
  • OptiPro Systems
  • Diamond Racing
  • Schlumberger
  • Gooch and Housego
  • EDAC Technologies
  • Cummins
  • FEI
  • L3 Technologies, Inc.
  • CTS Engines
  • Clarity Medical Systems
  • Chesterton
  • GE Aviation
  • Rockwell Collins
  • Trend Performance
  • TIMKEN
  • Lockheed Martin
  • GE Energy
  • Magellan Aerospace
  • Pratt & Whitney
  • Ferrotec
  • ASML
  • Fives
  • Rochester Precision Optics
  • Oberg Industries
Thanks a lot for your help. Your rapid, informative correspondence was invaluable. Hopefully I won't be bothering you with any further questions, but it's good to know you're willing. (following remote technical support provided for system installed at the South Pole) Morgan HedgesPost-doctoral Research Associate
Princeton University
Made in the U.S.A.

Every product we sell exemplifies our company-wide commitment to "Pride in Precision" craftsmanship. To that end, all of our products are designed, manufactured, and tested exclusively by ABTech at our New Hampshire facility.
